QuickDraw™ Filter

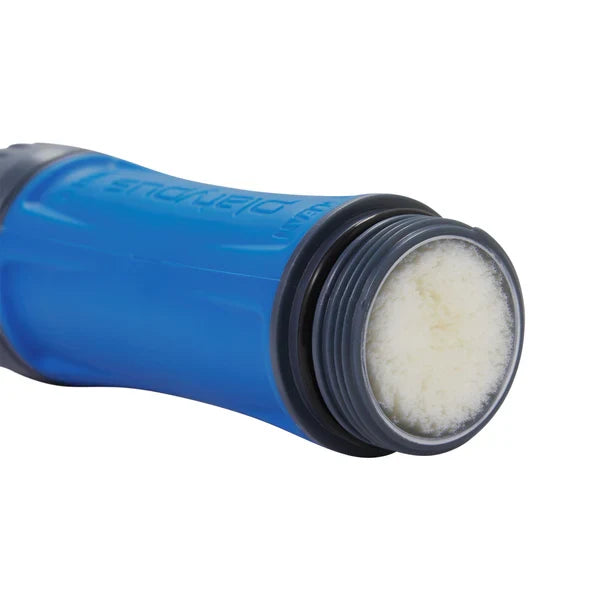

Improve your backcountry filtering experience with the do-it-all QuickDraw Filter. Hollow fiber technology allows the QuickDraw to filter water fast (3L/m) while remaining compact and ultralight (2.4 oz). It’s designed to work seamlessly with a wide range of bottles and reservoirs, empowering you to assemble a filter system tailored to your preferences. The dirty side I/O (inner/outer) threads attach to QuickDraw reservoirs as well as common narrow-mouth bottles like smartwater® and most Platy bottles.

On the clean side, select between the DrinkCap for drinking and pouring and the ConnectCap™ that attaches to narrow-mouth bottles. The filter is built to be safe, effortless, and long-lasting. Two cleaning methods—shake-to-clean and backflushing—keep the filter flowing fast throughout your trip, while the Integrity Check process allows you to ensure it’s still safely filtering water. So, choose your color, pick your vessels, and head out with a fast, effective and super-easy water filter system that’s all yours.

• Customize your system with this fast multi-compatible, ultralight squeeze filter.
• Combine & Customize: I/O dual threads and the ConnectCap™ let you dial in your custom leak-free system using the clean and dirty vessels you prefer, like smartwater^® bottles and Platy bottles.
• Ultralight & Compact: Filter weighs just 2.4 oz (69 g) and can fit in your pants pocket.
• Fast Flowing: Hollow fibers filter up to 3 liters per minute with normal squeeze pressure or 1.75 liters per minute in a gravity setup.
• Easy Cleaning: Easily shake-to-clean the system or backflush it to keep the water flowing fast throughout your trip.
• Safe & Effective: Each microfilter is individually tested to ensure it meets all EPA & NSF guidelines for the removal of 99.9999% of bacteria and 99.9% of protozoa*.
• Integrity Test: Unlike other squeeze filters, easily determine if your filter has been compromised and is unsafe to use in the event of a fall or freezing.

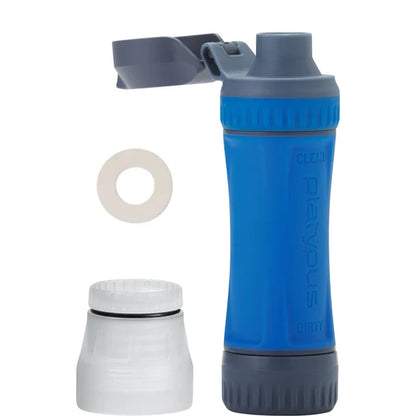

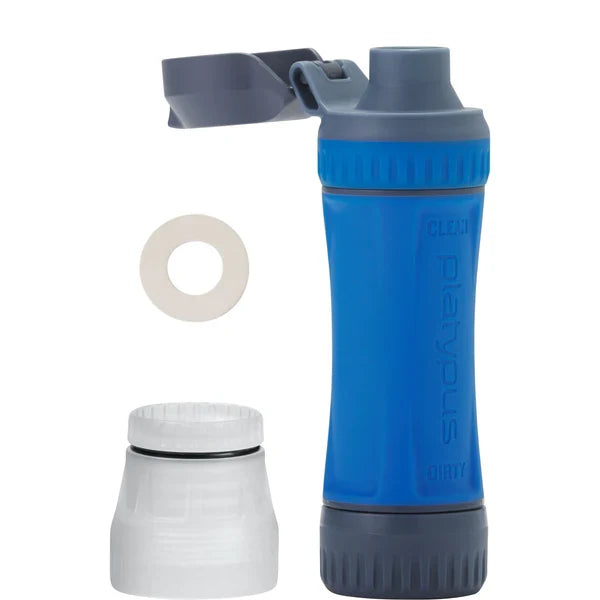

  Comes with QuickDraw Filter, dirty-side cap, ConnectCap™ with cover, DrinkCap, and backflush washer.

  *This includes Giardia, Cryptosporidium, E. coli, Salmonella and V. cholerae.

Specs:

Model: Platypus 11695 (Blue)
Size: 5 x 1.8 in (13 x 5 cm)
Min. Weight: 2.4 oz (69 g)
Total Weight: 2.9 oz (83 g)
Effective against bacteria: Yes
Effective against chemicals/toxins: No
Effective against particulate: Yes
Effective against protozoa: Yes
Effective against viruses: No
Filter media: Hallow Fiber
Filter pore size (microns): 0.2
Flow (L/min): 3 liters per min
Cartridge life: 1000 litres
Field cleanable: Yes
Water Bottle Adapter: Yes
Material(s): Plastic, Hallow Fiber
Country of Origin: Assembled in the U.S.A. of U.S. and Imported Materials
